      Product Configuration in Terminal Management TMX with Constellation

      The process for setting up products for dispensing on Constellation-connected Terminal Management TMX systems has changed. This article describes the steps on-site operators are required to complete.

      Applies to:

      • Terminal Management TMX
      • Constellation

      Note: This article applies to Constellation Products assigned to a site. For Constellation Recipes, see Recipe Configuration in Terminal Management TMX with Constellation for direction.

      When Constellation is connected to a site, product creation and updates are handled centrally, but some configuration is required on-site. This article covers using the Product setup tool to add Panel Bulk Product Pettings to Constellation-controlled products, enabling a system to dispense orders containing these products.

      Note: This article assumes a product has been assigned to the site, which can only be done by a company’s Constellation point of contact.

      Note: Constellation terminology for products and recipes has shifted from Terminal Management TMX.

      • A Constellation Product creates both a Product and Bulk product in Terminal Management TMX and does not allow an order item to be blended on demand, requiring the product in inventory.
      • A Constellation Recipe creates only a product in Terminal Management TMX and allows a site to blend an order item on demand.

      Further information can be found in the articles for Constellation Products and Constellation Recipes.

      Product Setup

      Constellation Products assigned to a site create both the product and bulk product in Terminal Management TMX; the product setup tool shows the options available to site operators.

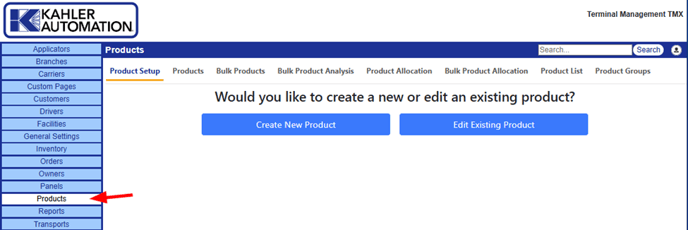

      1. Navigate to the “Products” section of Terminal Management TMX.
        The Product Setup tool is this section’s default page.
      2. Click the “Edit Existing Product” button.

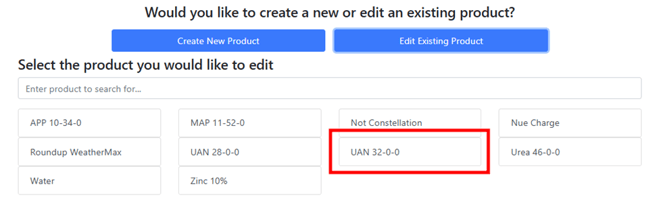

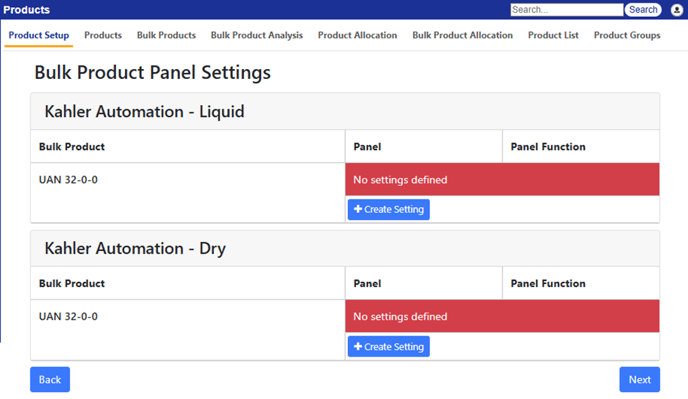

      3. Select a product to configure from the list. Terminal Management TMX then proceeds to the “Bulk Product Panel Settings Screen”
        1. The search bar is available to find specific products more easily.

      4. Click “Create Setting” for a facility.

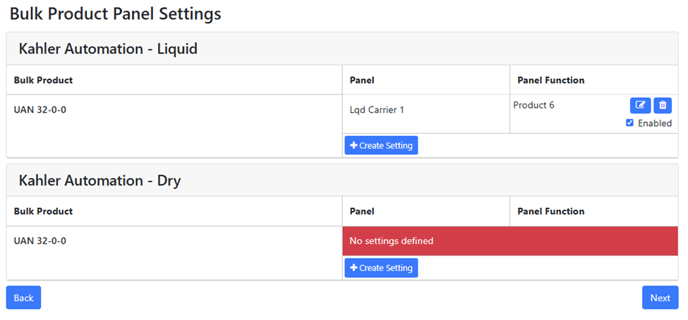

      5. Configure Panel Bulk Product Setting for panel.
        Detailed explanations of Panel Bulk Product Settings as they apply to dry and liquid systems are available at these links:
        - Panel Bulk Product Settings for Liquid Systems
        - Panel Bulk Product Settings for Dry Systems
      6. Return to step 5 if there are additional Panels in the facility to configure.
      7. Return to step 4 if the product is dispensed at additional facilities.
      8. Click “Next” when finished with all configuration for facilities and panels.

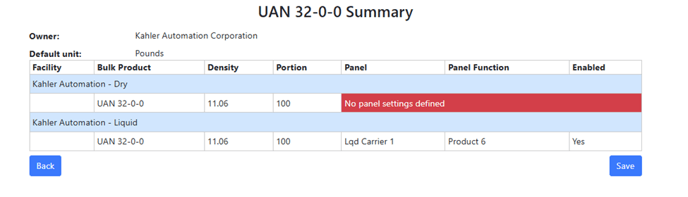

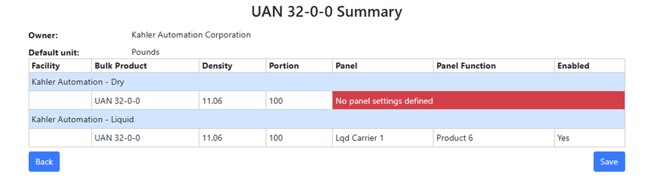

      9. Click “Next” until the Summary screen is displayed (example shown).
      10. Click “Save” to complete the process.
