Terminal Management TMX allows creating VRT orders for dispensing. In Terminal Management TMX these orders are referred to as “Do Not Blend.”
“Do not blend” Orders
Under the “Product(s) to be Dispensed” section of an order, the “Do not blend” check box is intended for variable rate applications. Checking the “Do not blend" box will add the Grouping section to each product in the order.
When no grouping (blank) is selected on a product that product will dispense separately from any other product.
Grouping names can be added in the bottom right of this section by entering a name and clicking the “Add grouping” button. After adding a grouping name, that group will be selectable in the grouping dropdown selector next to each product.
Each product that uses the same grouping (excluding no grouping) will be dispensed in its own compartment from the loadout software.

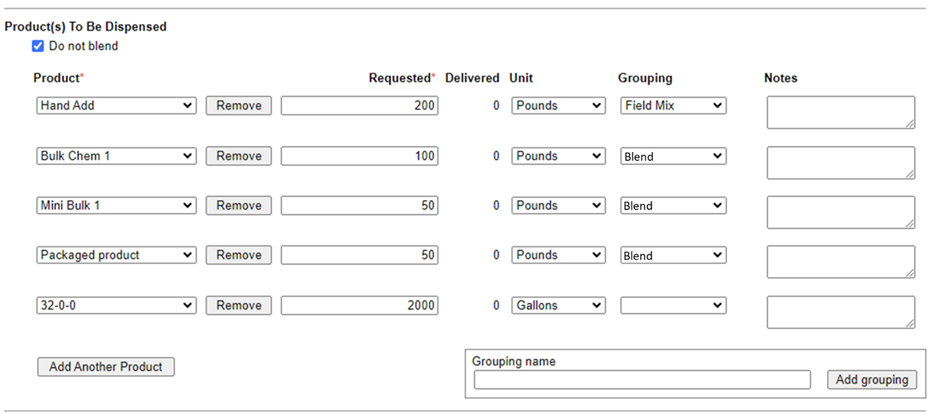

The example above would be split into 3 compartments in Plant Supervisor PSX.
- Compartment 1: the “Field Mix” grouping with 1 product.
- Compartment 2: the “Blend” grouping with 3 products.
- Compartment 3: the 32-0-0 with no grouping assigned.
