Illegal Product Error

Product setup causes an error when attempting to dispense a product.

Illegal Product Errors can be reported by Plant Supervisor PSX when the selected panel function for a bulk products Panel bulk Product Settings is not an allowable option. Controllers for systems may have limits on the allowable Product numbers selected for the panel function; using an option outside of this results in an Illegal Product Error.

Solution

  • From Terminal Management TMX, navigate to Panels (1), then Panel Bulk Product Report (2).
  • From the “Bulk Product” drop-down menu (3) at the top of the page, select the product causing the error.
  • Click the “Apply filter” button (4).
  • Examine the Panel Function column (5).

Allowable panel functions vary dependent on the controller. Common limits for a controller may be that hand-adds are not allowed, or only panel functions from 1-16 or 1-32 are allowed.

To change the assigned panel function:

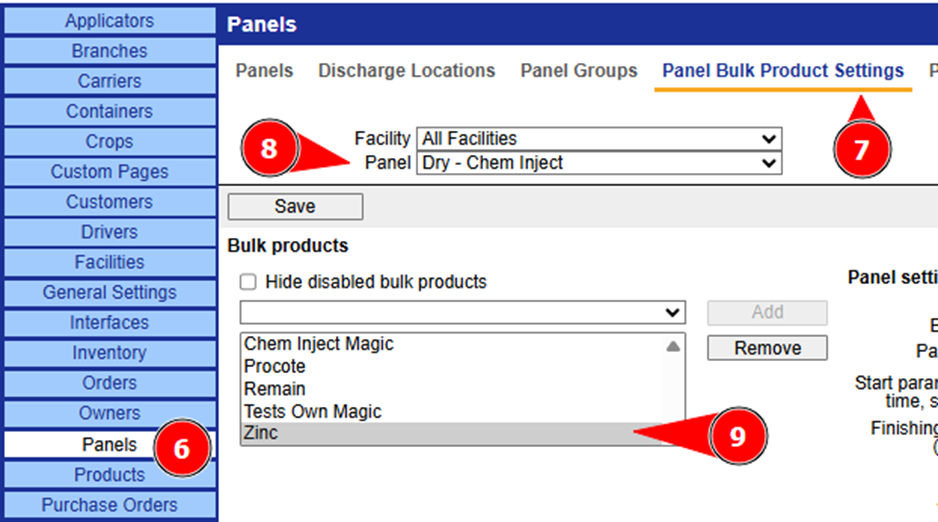

  • Navigate to Panels (6), then Panel Bulk Product Settings (7).
  • Select the panel dispensing the product from the drop-down menu (8).
  • Click the bulk product from the list (9).

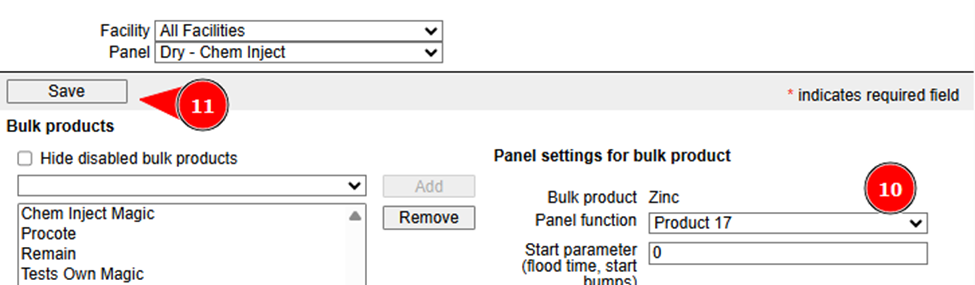

The panel function can be changed (10). Double-check that the chosen function lines up with where the product will be dispensed.

Click “Save” to apply the change (11).
