Using the "Do Not Stack" setting in the Plant Supervisor PSX configuration menu.
Applies to
- Plant Supervisor PSX version 4.22.28 and later

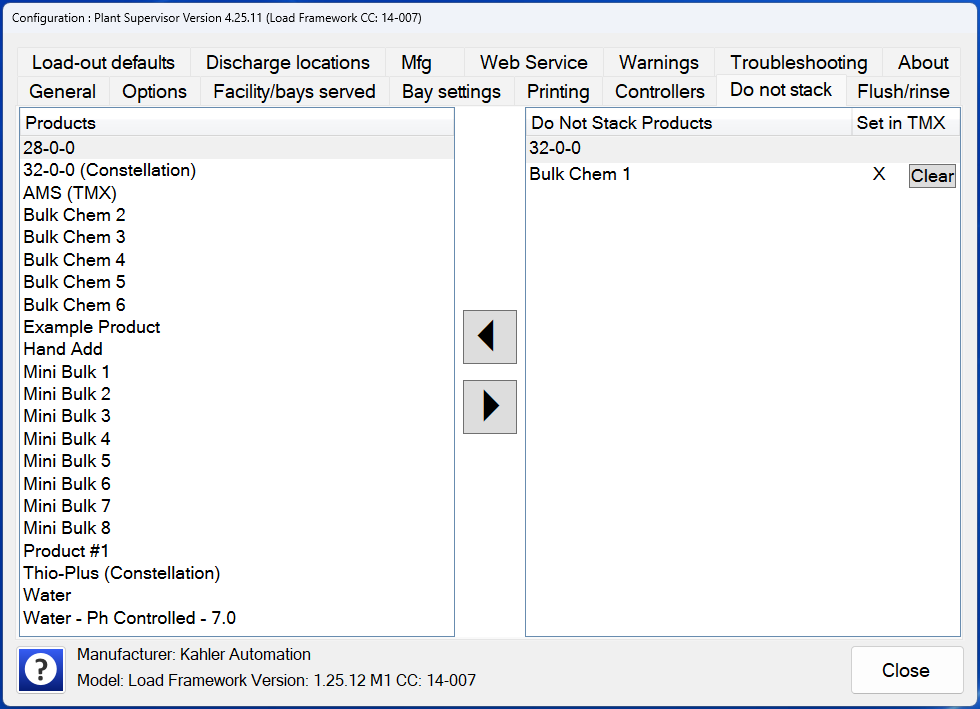

This newly added configuration option in Plant Supervisor PSX allows for greater control of the operation of facilities. While the “Do Not Stack” option still exists in Terminal Management TMX product settings, it has always been a global option. This new configuration option in Plant Supervisor PSX is specific to only that copy of Plant Supervisor PSX, allowing more control of the system. To access, select the wrench icon in the top right-hand corner; when the configuration page opens select the tab labeled “Do not stack”.
To set a product as “Do Not Stack”, select the product in the left-hand column, and click the arrow pointing to the right. To clear the “Do Not Stack” setting, select the product from the right-hand column and click the arrow pointing to the left.
Products marked as “Do Not Stack” in Terminal Management TMX cannot modify the “Do Not Stack” option inside Plant Supervisor PSX.
Click the “Close” button in the bottom right of the configuration window to close and save any changes.
