Dry tower systems allow for bulk products to be assigned to bins as needed.
Once a Bulk Product and Product have been created in Terminal Management TMX, they can now be assigned to a panel to be dispensed from a bin.
The product must first be assigned to a panel (if it isn’t already). View the article Panel Bulk Product Settings for Dry Systems for assistance.

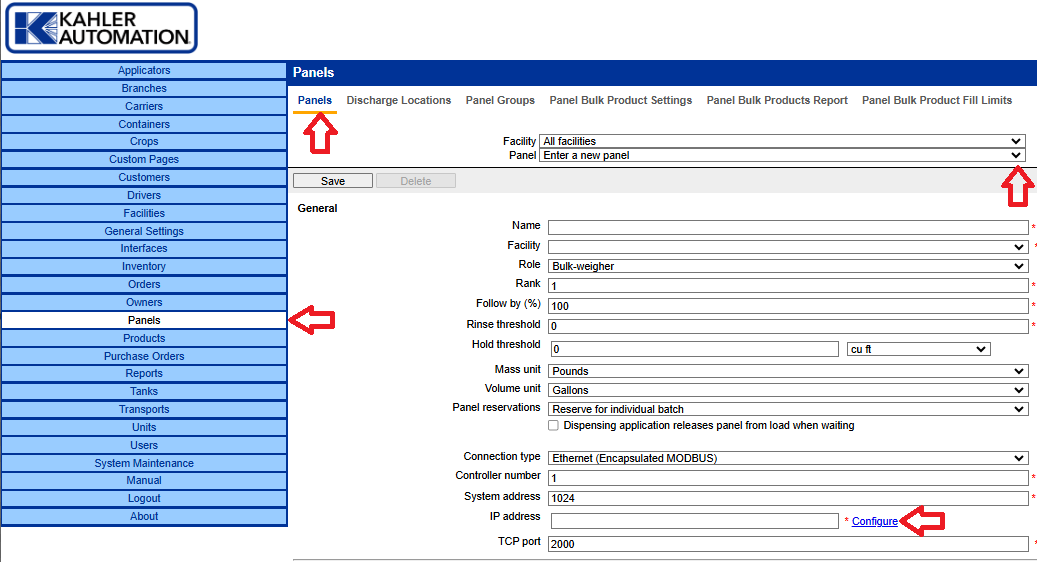

With those settings in place, navigate to the Panels tab on the Panels page and select from the drop-down box the panel for which you assign bins. Then, next to the “IP address” field, click the "Configure” link to open the panel’s webpage/bin configuration page. (If a username and password is requested, simply enter the password 6648).
Note: Sites may have a direct link to the bin config page, either from a custom link in Terminal Management TMX, or a bookmark or desktop shortcut. If one of these is not available, the steps above will provide access.

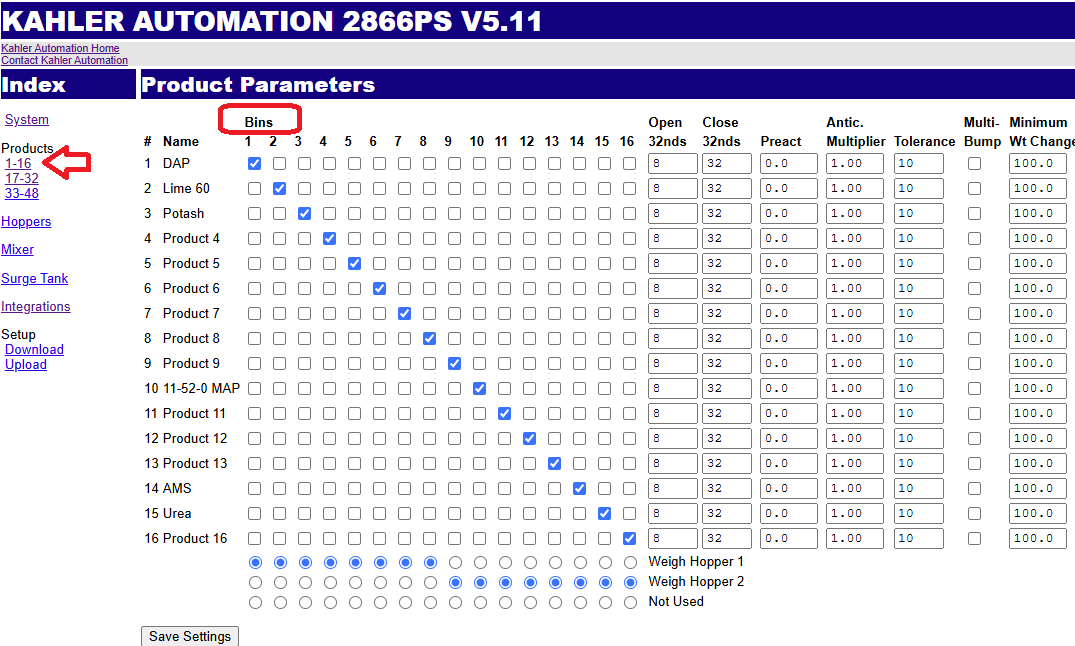

On the panel webpage, navigate to Products on the left. Refer to that product number depending on what was assigned as the Panel Function. For this example Product 1 was used, so “Products 1-16" was selected, and the bins that would dispense Product 1 were chosen.
